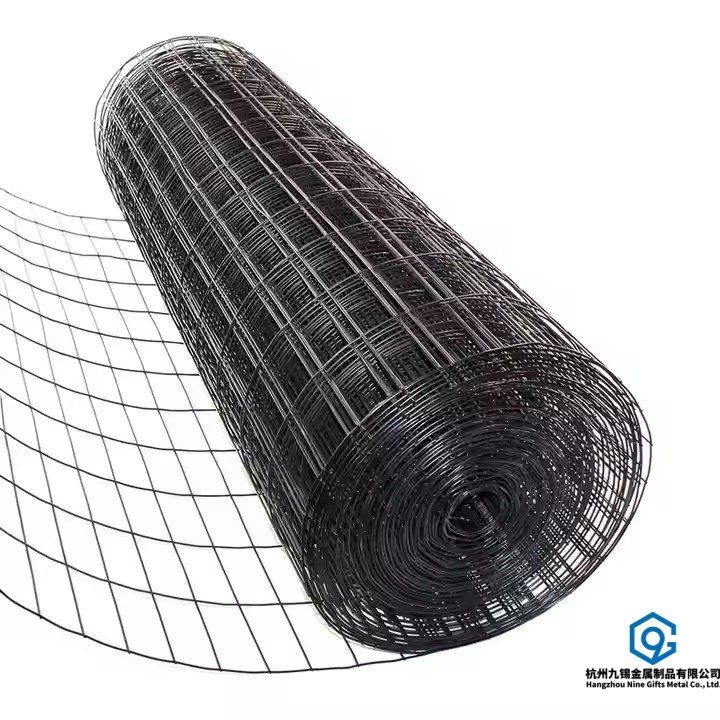

Welded Wire Mesh is also called welded wire fabric, wire grid, welded mesh, weld mesh, steel wire mesh, galvanized steel mesh.It is produced from metal wires welded at their intersections by automatic welded wire fabric machine. By using different diameter metal wires it can be made into a light or heavy gauge welded wire mesh roll.The metal wire include stainless steel wire,iron wire or steel wire.
Welded wire mesh is lighter because the wires are not crimped as in woven wire mesh; therefore it utilizes less wire. With automatic welded wire mesh machine, the wires are welded together at every wire intersection. With every wire welded to the next, cut outs can be made and the mesh never loses its shape, even if cut in parts or being exerted force on parts.
Welded wire mesh is widely used in construction, agriculturalindustrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.Therefore it is also known as garden wire mesh, plaster mesh, steel mesh roll, welding mesh, galvanized mesh, galvanized welded wire, hollow brick wire mesh, concrete block mesh, brick mesh, vermin mesh, steel matting, wire grid, etc.
We produce welded wire mesh with following specifications.
Custom orders with different width and length is also welcome.

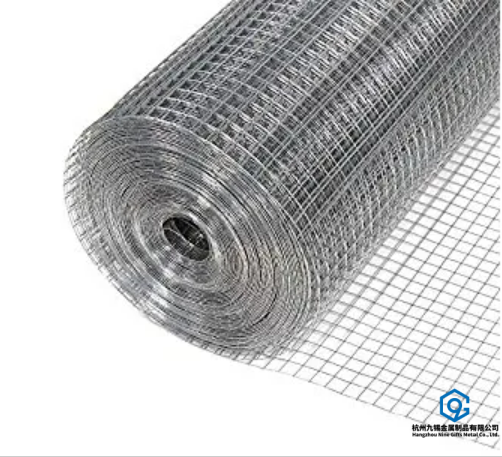

Galvanized Welded Wire Mesh
Due to its attractive price point and its corrosion resistance, galvanized wire mesh is very popular among industrial users of wire mesh. Used for cooler gates, wall reinforcement in residential houses, schools, club houses, under ground water tank linings, bird cages, cat proof fancing, rabbit cage wire, EPS wire mesh foam panel and many more.
Galvanized mesh divided into:
1. Electro Galvanized BEFORE Welded Mesh(galvanizing first then welding);
2. Electro Galvanized AFTER Welded Mesh(welding first and then galvanizing);
3. Hot-dip Galvanized BEFORE Welded Mesh(galvanizing first and then welding);
4. Hot-dip Galvanized AFTER Welded Mesh(welding first and then galvanizing);
Galvanized Welded Wire Mesh Size:
• Hole size: 1/4", 1/2", 3/4", 1", 1-1/2", 2", 3" etc.
• Width: 3', 4', 1m, 1.2m or 0.5m-1.8m.
• Length: 100', 30m, 50m, 100m.
(Other size can produced as customer's requirements)

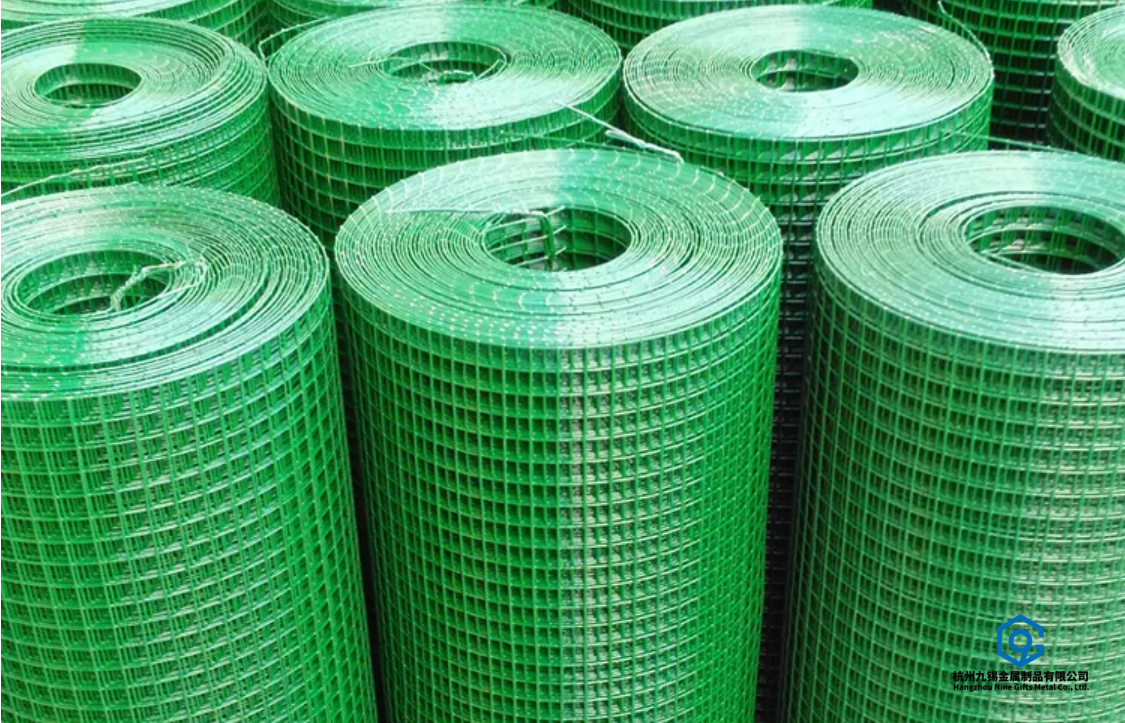

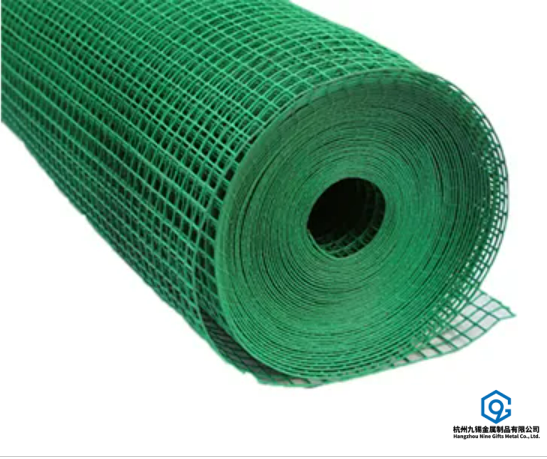

PVC Coated Welded Wire Mesh
The smooth plastic coating on this corrosion protective wire is attached with a strong adhesive which make increases durability of the wire. All kinds of colors can be coated according to customer special requirements. It is used in fencing residential and official properties like gardens, parks, building, etc.
PVC Coated Welded Mesh Size:
• Material: Non-galvanized iron wire, electro galvanized iron wire, hot dipped galvanized iron wire
• Production: First welding, and then PVC coating

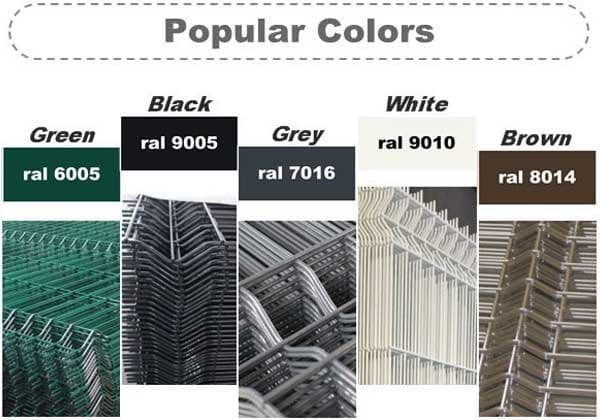

• Colour of PVC coating: Dark green, ligh green, black, blue, etc
• Hole size: 1/4", 1/2", 3/4", 1", 1-1/2", 2", 3"etc.
• Width: 3', 4', 1m, 1.2m or 0.5m-1.8m as customer's requirements.
• Length: 100', 30m, 50m, or as customer's requirements.

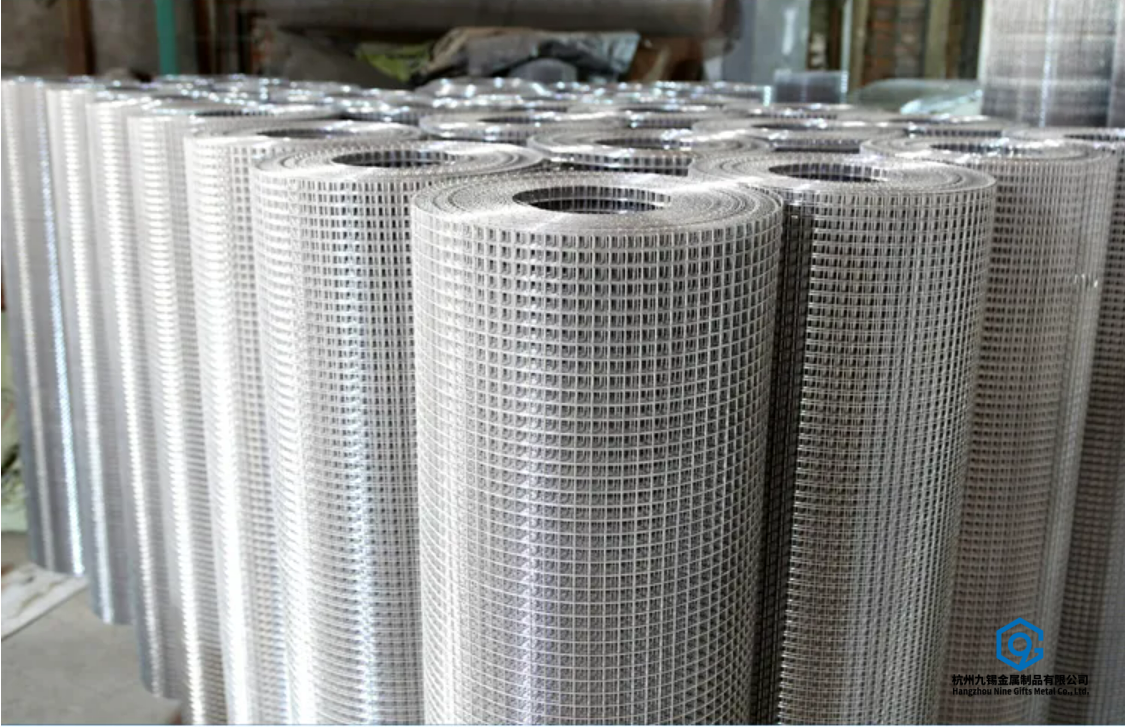

Stainless Steel Welded Wire Mesh
The use of stainless steel welded mesh for many industrial applications is rapidly increasing where its strength, hygienic and rustproof qualities have proved to be of benefit. More and more users are recognising that the long term advantages of stainless steel far outweigh the higher initial cost. This corrosion resistance meshed wire is long lasting and is widely used in mining, transportation, agricultural, entertainment and other service sectors.
• Material: Stainless Steel wire AISI 304, 316, 304L, 316L etc,
• Production: Welding.
• Hole size: 1/4", 1/2", 3/4", 1", 1-1/2", 2", 3"etc.
• Width: 3', 4', 1m, 1.2m or 0.5m-1.8m as customer's requirements.
• Length: 100', 30m, 50m, or as customer's requirements.
Waterproof paper inside and woven bags outside.
Perfect package avoid to be damaged and rust during the transportation.
As professional Wire Mesh Supplier , we are able to supply high quality Wire Mesh with low price, welcome contact us freely !
